Accessories Metallurgical Microscope |
|
Micrometer (Ocular): with 10 mm scale in 100 Div. Object Micrometer Slide : 1mm in 100 division (Erma) Filters :Geen, Yellow, Blue, Daylight Fillar Micrometer Eyepiece Grain Size Eyepiece : WF 10x with 8 grain chart for rapid omparsion of micro structure.
|
|
|
|
Inverted Metallurgical Microscope : |
|
Lyzer Inverted Metallurgical Microscope(LT-23B):Fitted with binocular head asembled from hard coated prisms. Bright field horizontal 12V/50W illumination with iris diaphragm and slots for dropping filters,seperate camera port for photomicrography, providing magnification from 50x to 1000x, Quardruple ball bearing revolving nose piece, special graduated triple layer co-axial machanical stage for X-Y movement , with variable light intensity control transformer built in the large sturdy base, with plywood carrying cabinet. Objectives: M10x, M20x, M40x & M80x Eyepieces : WF10x and 15x
|
|
|
|
|
LYZER Binocular Co-Axial Metallurgical Microscope(LT-22B) :New improved model having Co-axial coarse and fine focusing system travel on ball guides for smooth and long life movement is fitted with Binocular head assembled from hard coated prism, Bright field horizontal 6v/20W illuminator is equipped with iris diaphragm and slot for dropping filter, Quadruple revolving BALL BEARING assembeled nose piece, special graduated Low Drive co-axial mechanical stage, having built in base variable light control transformer, supplied with two coloured filters,Dust cover and following optics in box. Objectives: M10x and M 45x (SL) Eye pieces: WF 10x and H15x (Paired) |
|
|
|
Metallurgical Microscope : |
|
Lyzer Student Metallurgical Microscope : Monocular inclinable body having coarse and fine motion, Bright field horizontal illuminator with iris diaphragm and slots for dropping filter. Triple revolving nosepiece,Supplied with variable light control transformer and following optics in box. Objectives M10x and M 45x (SL) Eye pieces WF 10x and H 15x |
|
|
|
Metallurgical Microscope : |
|

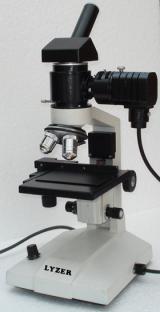

LYZER Inclined Monocular Metallurgical Microscope : Fitted with Monocular observation tube inclined at 450, Bright field horizontal illuminator with centring provision, field and aperture diaphragm and slots for dropping filter, Quadruple revolving nose piece, Special graduated mechanical stage, supplied with variable light control transformer and following optics in box. Objectives: M10x and M 45x (SL) Eye pieces: WF 10x and H 15x |
|
|
|
Metallurgical Microscope : |
|
Lyzer Binocular Metallurgical Microscope(LT-22) :Fitted with Binocular head assembled from hard coated prism, Bright field horizontal 6v/20W illuminator with iris diaphragm and slot for dropping filter, Quadruple revolving nose piece, special graduated mechanical stage, having built in base variable light control transformer, supplied with two coloured filters,Dust cover and following optics in box. Objectives: M10x and M 45x (SL) Eye pieces: WF 10x and H15x (Paired) |
|
|
|
Metallurgical Microscope : |
|
Trinocular Metallurgical Microscope : Fitted with Trinocular head asembled from hard coated prisms. Bright field horizontal illum- ination with centring provision, iris diaphragm and slots for dropping filters, Quardruple revolving nose piece, special graduated machanical stage, variable light control transformer built in the large sturdy base,with plywood carrying cabinet. Objectives M10x and M 45x (SL) Eye pieces WF 10x and H15x |
|
|
|
Metallurgical Microscope: |
|
Lyzer Upright Metallurgical Microscope(IMP-1): TRINOCULAR OBSERVATION HEAD Binocular Siedentopf inclined at 30 degree,Phototube for micro photography,Diopter adjustment ring on ocular tube,Interpupillary distance from 55mm to 75mm
EYEPIECE Wide field eyepiece 10X (Paired) FOV 20mm OBJECTIVES INFINITY CORRECTED CCIS Long Working Distance Plan Achromatic 10X CCIS Long Working Distance Plan Achromatic 20X CCIS Long Working Distance Plan Achromatic 40X (SL) CCIS Long Working Distance Plan Achromatic 80XDry MECHANICAL BODY
Co-axial focusing system with large focusing knobs having lever & tension adjustment ring. Quadruple nosepiece on ball bearing. Mechanical stage is 150mmX140mm. The Mechanical stage has low positioned co-axial controls on ball bearing guide ways. Hand rests on both sides.
ILLUMINATOR The reflected light illuminator has 6V-20W halogen lamp, adjustable brightness.
PACKING STYRO FOAM moulded pack |
|
|
|
Metallurgical Microscope: |
|
Lyzer Portable and Field Metallrurgical Microscope: A very compact microscope usefull for small jobs and field work, Equipped with bright fileld horizontal 6V/20W halogen lamp, with seperate variable control power supply, fixed magnification of 50x OR 100x, focusing with rack and pinion movement. |
|
|
|
|
Lyzer Tool maker's Microscope (LT- 24 ) : With X-Y movement on ball bearing slides. Having Micrometer (50mm dia) L.C. 0.01 or 0.005mm with gounometer. Fixed magnification 30x . Having both transmitted and incident light in wooden box. Optional ACCESSORIES: A.Depth Measuring attachment B.Centre holding device attachment C.V-BLOCK D.V-SUUPORT E.Measuring Eye Pieces with reticles (each) |
|
|
|
|
