 Petrological Microscope

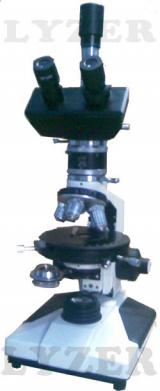

Lyzer Trinocular Petrological Microscope : With tripple revolving nose piece, co-axial coarse and fine motion, circular  stage, rotatable in 360 degree, graduated with vernier reading up to 0.1 degree with provision for centring by two knobs located just below  the circular stage,polariser with swing out system. Compact analyser head having iris diaphragm, Bertand lens, Analyser rotating ring and half/full wave compensator with following optical combination.
Objectives   5x, 10x and 45x (SL)
Eyepieces    WF10 x (Pair)


Petrological Microscope
 POLARISING MICROSCOPE :

LYZER POLARISING MICROSCOPE : MICROSCOPE (Available in Four type Models):Monocular, Binocular and Trinocular Polarising microscopes having co-axial system for coarse and fine motion. It has been designed for extensive routine work of industries as well as scientific examination in Geochemistry, Minerlogy, Petrography, Metalography, Biology and branches of pharmacology etc.
Optional Combination :
Eyepiece   :WF10x&H15x  (Cross)                                     Objectives :5x,10x,20x(SL) OR 45x(SL)

a)LT-18 MONOCULAR INCLINED POLARISING MICROSCOPE : With monocular inclined tube and optical combination as above. With halogen lamp. Complelte in wooden box.
b) LT-19 BINOCULAR POLARISING MICROSCOPE :
Same as above, but fitted with Binocular head instead of monocular tube, and having paired eye Piece.
c) LT-19A TRINOCULAR POLARISING MICROSCOPE :
Same as above, but fitted with Trinocular heads having provision for photographic attachment.
d) LT-18A STUDENT POLARISING MICROSCOPE :
Optical data same as above but designed with monocular Inclinable vertical body having rack and pinion coarse and fine motion. Complete in wooden box.

POLARISING MICROSCOPE :
